Description | SCREEN SHOTS |

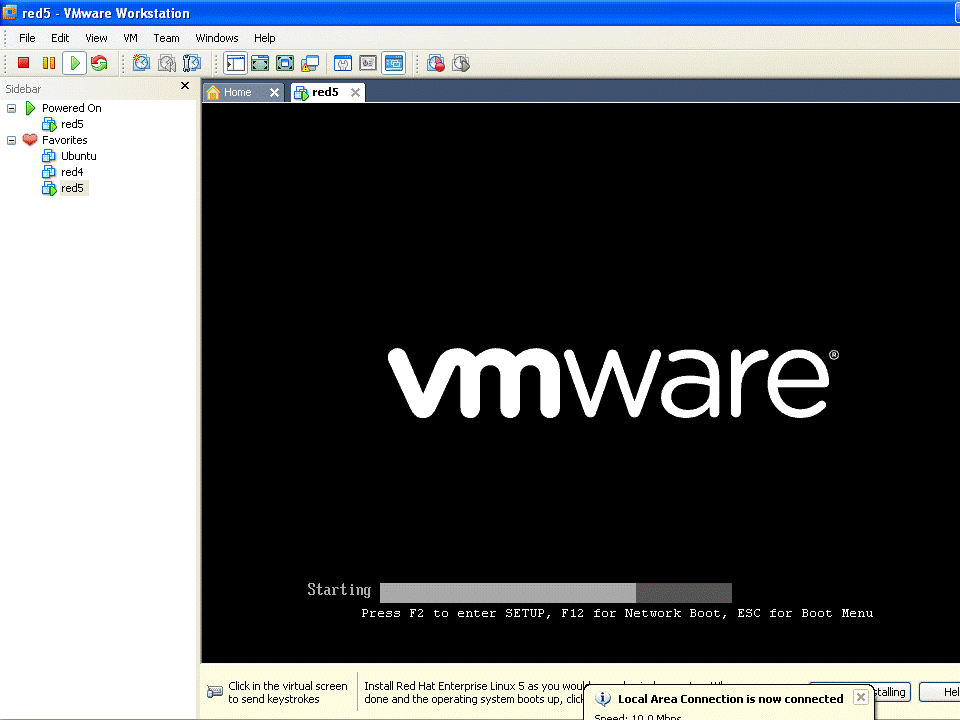

Create Virtual Machine
and place RedHat V5
o/s cd in CD-ROM and
power on Virtual machine | |
Press Enter to continue
the installation in
Graphical Mode | |
Select Skip option
using Tab button &
press Enter | |
Click Next | |
Click Next | |
Select option
(Skip Entering ) &
click OK | |
Select Skip option
& press Next | |
Select Create Custom
lay out | |
Click Next | |
Click NEW | |

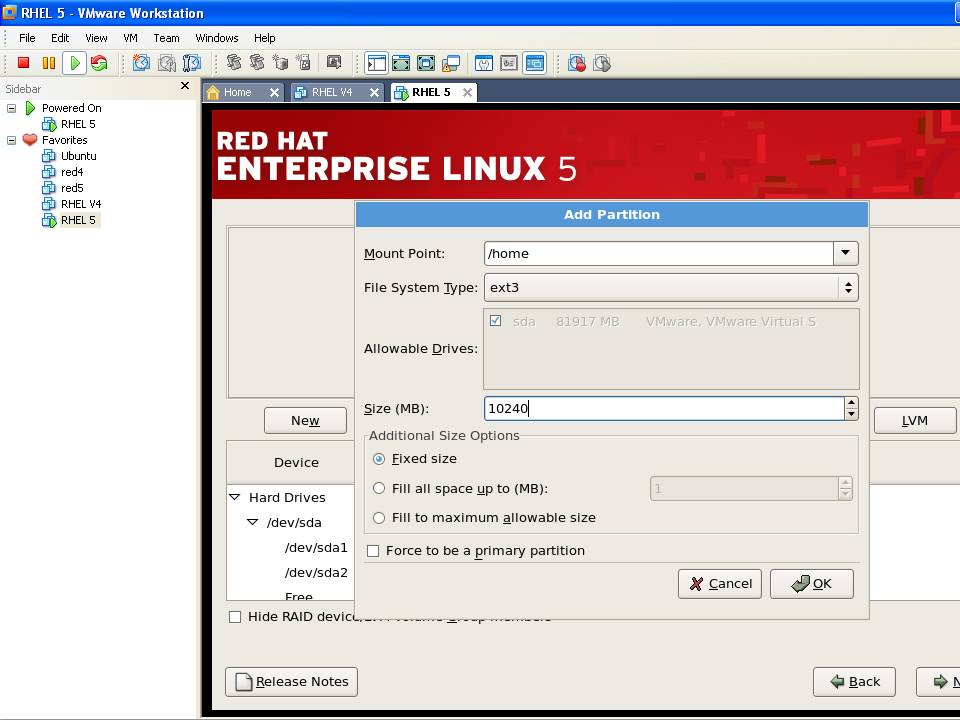

Select Required MountPoint
& specify SIZE & Click ok | |
Select Required MountPoint
& specify SIZE & Click ok | |
Select Required MountPoint
& specify SIZE & Click ok | |
Select Required MountPoint
& specify SIZE & Click ok | |
Select Required MountPoint
& specify SIZE & Click ok | |
Select Required MountPoint
& specify SIZE & Click ok | |
Select Required MountPoint
& specify SIZE & Click ok | |
Select Required MountPoint
& specify SIZE & Click ok | |
Select File System Type as
SWAP & specify SIZE
double of RAM & Click ok | |

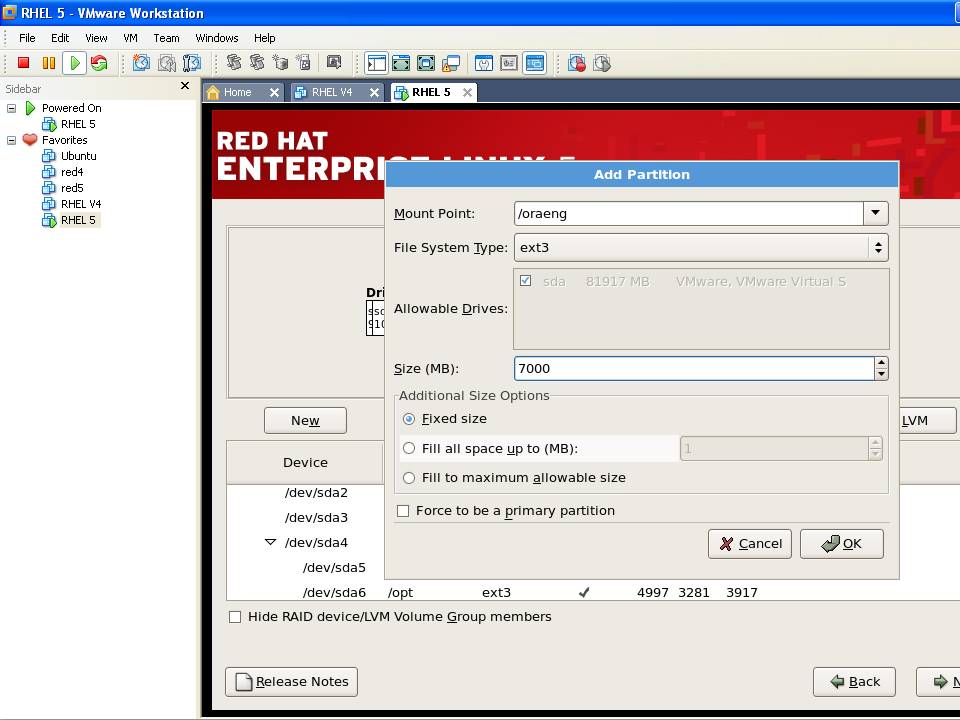

Write a mount point as
/oraeng & specify SIZE
& click OK | |
Write a mount point as
/disk1 & specify SIZE
& click OK | |
Write a mount point as
/disk2 & specify SIZE &
click OK | |
Write a mount point as
/disk3 & specify SIZE
& click OK | |

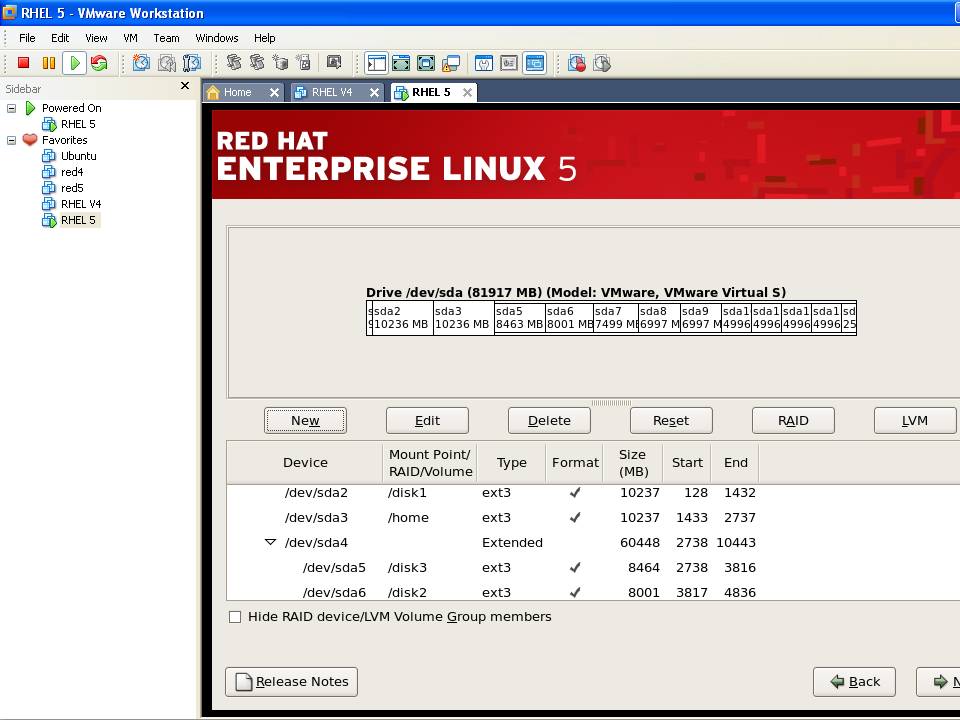

Click Next | |
Click Next | |
Click Next | |
Select TimeZone as
Asia/Calcutta & Click Next | |
Give password for ROOT
and dont forget the password | |
Select Every option
& Click NExt | |
Select Each option &
Put Tick mark for all | |
Select Each option &
Put Tick mark for all | |
Select Each option
& Put Tick mark for all | |
Select Each option
& Put Tick mark for all | |
Select Each option &
Put Tick mark for all | |
Select Each option
& Put Tick mark for all | |
Click Next | |
Click Next | |
Formating of
Moutpoints had Started | |
Installation had Started | |
Installation had Finished
& click Reboot | |
After Rebot | |
Click Next | |
Click I Agree &
Click Next | |
Select Firewall Diasbled
& click Next | |
Select Yes &
click Next | |
click Next | |
Select SELinux Diasbled
& click Yes & click Next | |
click Next | |
Adjust Date & Time | |
Select option
( I Prefer to register Later)
& Click Next | |
Select option
(NO, Thanks) & click Next | |
Create USer & Click Next | |
Click Next | |
Click Next | |
Select Ok | |
Enter Username as root
& press Enter | |
Enter Password of root
& press Enter | |
YOU have installed
RedHat Linux V5 Successfully | |
